Ainex Vision Navigation

Humanoid demo • Vision → decision → one ROS motion primitive (safety-first)

Ainex vision navigation thumbnail

I built a safety-first navigation demo for an Ainex humanoid where the robot captures a camera frame, sends it to a vision-language decision module, then executes one small, controlled motion primitive (forward/turn/stop) via ROS. The point is to separate responsibilities: the AI makes high-level decisions; the robot controller keeps motion stable.

TL;DR

Camera snapshot → VLM decision JSON → exactly one ROS motion primitive. Conservative defaults, predictable behavior, easier debugging.

My role

Designed the closed-loop decision loop and safety constraints (single-step execution + STOP fallbacks), integrated ROS motion primitives, and built test tooling for camera capture + command execution.

Tech

ROS NoeticPythonBashAinex walking stackVision-Language ModelLinux/Robot workflow

Links

GitHub Repo

Overview

This project explores vision-based navigation for an Ainex humanoid robot using ROS (Noetic). The robot captures images onboard, sends them to a vision-language decision module, then executes one safe, discrete motion primitive at a time. The result is a full autonomy loop — see → decide → move → see again — with optional user prompts at ambiguous intersections. Conducted as research under Professor Myung (Michael) Cho.

Workflow

  1. Capture: Save a reliable frame from /camera/image_rect_color (with fallbacks if needed).
  2. Decide: Model returns a strict JSON action from a constrained action set.
  3. Execute: Run one motion primitive through the Ainex walking stack (ROS topic/service).
  4. Repeat: Loop until STOP, or ask user for input at uncertain junctions.

Constrained action set

  • MOVE_FORWARD_SHORT
  • TURN_LEFT_90
  • TURN_RIGHT_90
  • STOP
  • ASK_USER("Left or right?")

Design principles

  • The “brain” makes high-level decisions only.
  • Low-level walking stability remains inside the existing Ainex controller.
  • Default behavior is conservative: when uncertain → STOP or ASK_USER.

What I implemented

  • Motion primitives as scripts: single-purpose commands (forward step, 90° turns, stop).
  • Reliable camera capture: scripts to create a consistent capture image.
  • Decision module: strict JSON parsing + defensive fallbacks to STOP + env-based config (model, tokens, temperature).
  • Demo modes: single-step, closed-loop loop, and DRY_RUN to test decisions without moving hardware.

Results / demo behavior

  • Capture frames and perform inference
  • Select a discrete action from a constrained action set
  • Execute a safe step and re-evaluate the environment
  • Support human-in-the-loop navigation: at uncertain junctions, ask for user input rather than guessing

Key challenges (and what I learned)

  • ROS environment issues: mismatched ROS_MASTER_URI, missing nodes, unreachable services → learned fast debugging patterns for ROS networks and startup order.
  • Walking drift / curvature: small gait asymmetries cause arc turns → learned to isolate decision vs execution vs gait tuning.
  • Reliability beats cleverness: the best demo is the one that runs 20 times in a row.

Tech stack

  • ROS Noetic
  • Ainex walking stack (topics/services)
  • Python (decision loop + client integration)
  • Bash scripts (motion/capture primitives)
  • Windows dev workflow (GitHub app + sync scripts to robot)

Media

Camera functionality test on the robot.

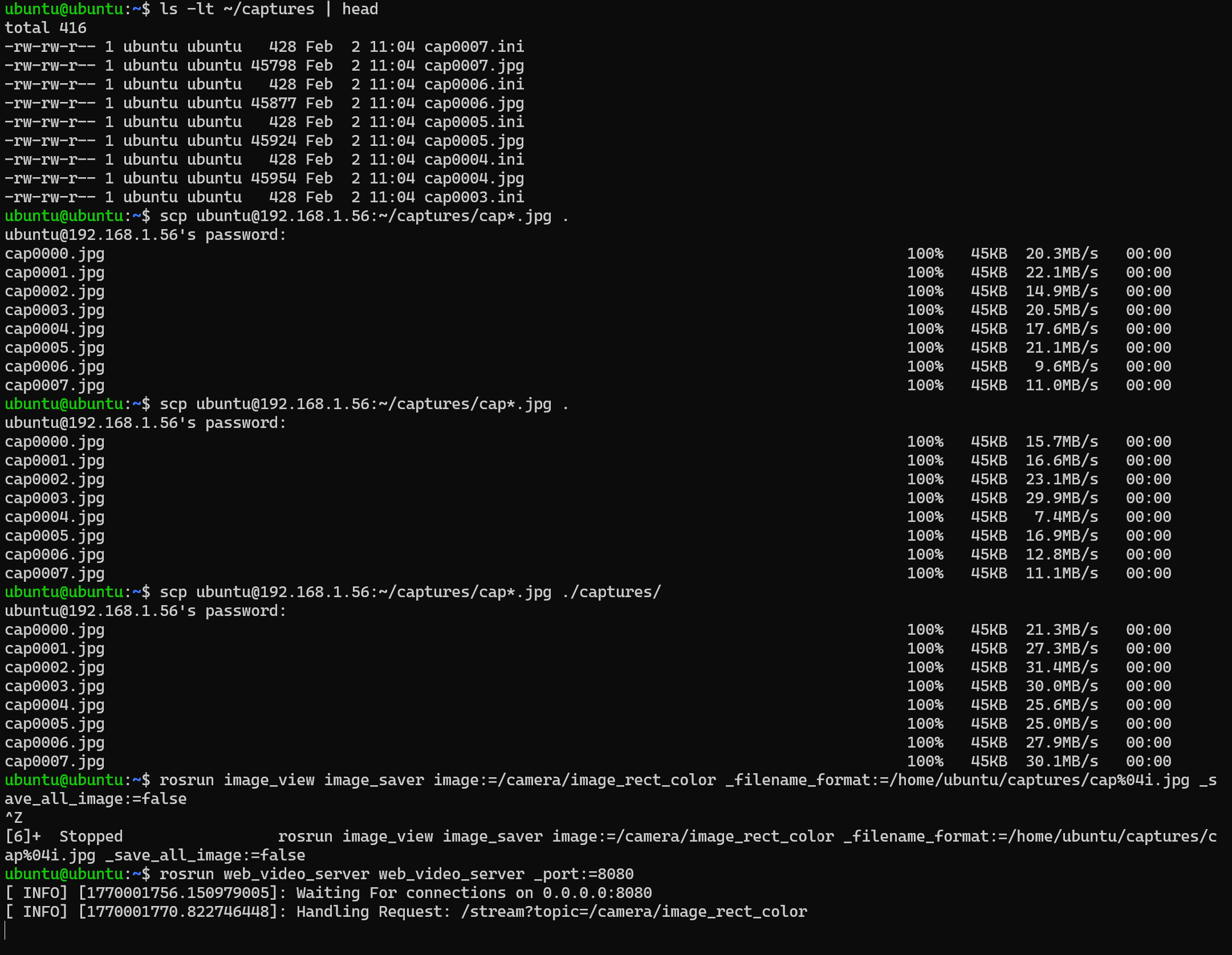

Camera test CLI screenshot
Camera capture test from the command line.
Demo: closed-loop navigation (capture → decide → execute → repeat).

Safety considerations

  • Single-step execution (no continuous uncontrolled walking)
  • Conservative defaults: STOP if parsing fails or confidence is low
  • Optional user confirmation at ambiguous scenes
  • Clear separation between decision and actuation layers

Future work

  • Run the “brain” locally on-device (replace API calls with an onboard model)
  • Improve gait stability and reduce drift (calibration + parameter tuning + feedback)
  • Add simple state (e.g., avoid repeating the same turn immediately)
  • Add basic obstacle safety checks (e-stop, distance thresholds, or vision heuristics)

Repository

Explore the code on GitHub: Ainex Vision Navigation
